CLEAN-CUTS HYDM100

Cuts 2″ ID x 6 Wire Hydraulic Hose

Order by phone: 860-658-4419

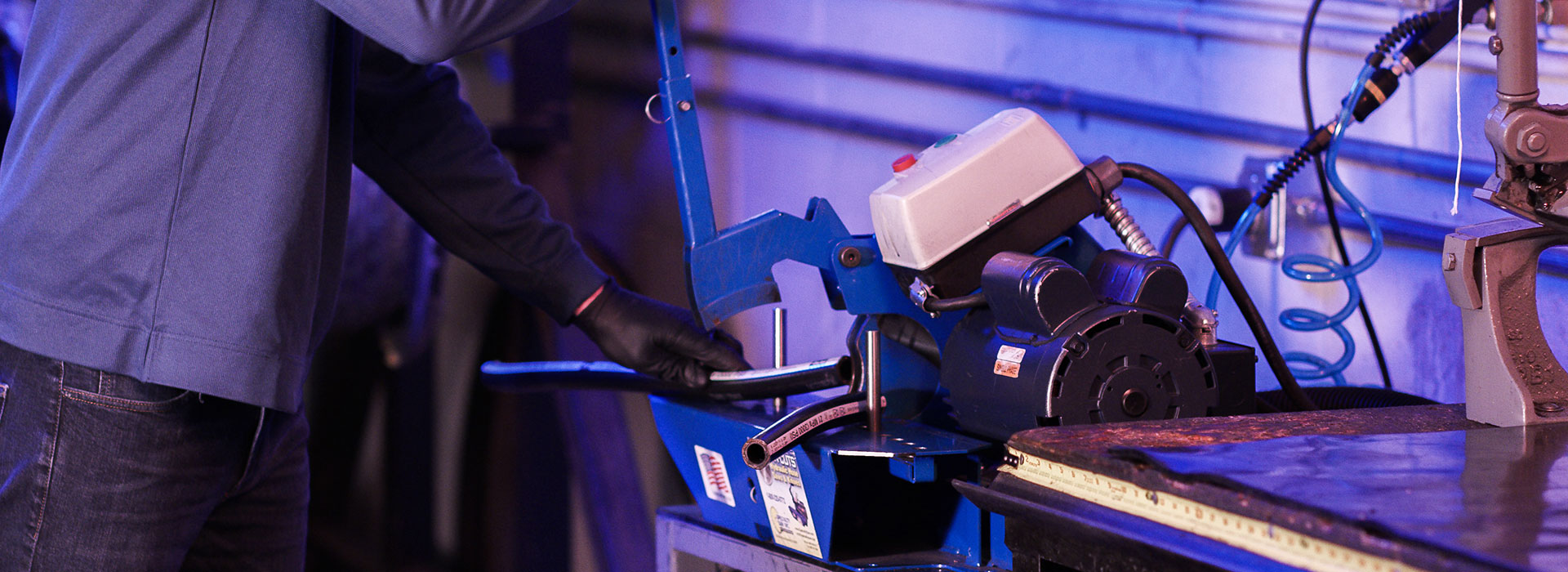

Clean-Cuts™ Bench Mount 10″

Model: HYDM100

The Clean-Cuts HYDM100 has been designed for cutting 2″ ID x 6 Wire Hydraulic Hose. For shops on 220V, the HYDM100 comes in either 5hp (1 Phase) 60 Cycle, 21 Amp or (3 Phase) 3hp 60 Cycle, 11 Amp models. Alternatively, shops on 440V may opt for the HYDM100 in 3 HP, 440 VAC (3 Phase) 60 Cycle, 4 Amp version. Both saws run at 3,430 RPM.

The Magic Behind Clean-Cuts™

Model	Motor	Plug
HYDM100 220V	5 HP, 220 VAC (1 Phase), 60 Cycle, 21 Amp, 3,490 RPM	L6-30P
HYDM100 220V-3	3 HP, 220 VAC (3 Phase), 60 Cycle, 11* Amp, 3,490 RPM	L15-20P
HYDM100 440V-3	3 HP, 440 VAC (3 Phase), 60 Cycle, 4 Amp, 3,490 RPM	L16-20P

Documentation

Clean Cuts Bench Mount 10" (Model 100) Instruction Manual(.pdf, 1.43 MB) - 1192 download(s)
Clean Cuts Bench Mount 10" (Model 100) Cut Sheet(.pdf, 254.11 KB) - 1065 download(s)

HYDM100

Explore Product Features in 3D

Cuts 2″ ID x 6 Wire Hydraulic Hose

Proven Performance

Clean Cuts™ saws use controlled hose bending to produce a cleaner, more perpendicular cut — minimizing fray and distortion at the hose end. The adjustable peg system fine-tunes the bend angle based on hose diameter, ensuring optimal positioning for every pass.

VacuPort™ Keeps Your Shop Clean.

The integrated VacuPort™ system takes debris control to the next level. While Clean Cuts™ blades already reduce fray and smoke, VacuPort™ actively extracts fine particles and vapor at the source — keeping your workspace cleaner, safer, and more breathable with every cut.

The Complete Clean Cuts™ System

From saws to smoke control, Clean Cuts™ offers more than a cleaner cut — it’s a cleaner process. Each piece of the system works together: VacuPort™ extracts debris at the source, the hose rack organizes workflow, and the saw-ready table brings it all together. Available in both single- and three-phase power, Clean Cuts™ is built to fit the way you work.

*Optional equipment shown sold separately.

Proven Performance: Clean-Cuts HYDM-100

A simple clip, but all the proof you need. The Model HYDM-100 delivers a fast, clean cut with less smoke, less mess, and no fight. Just performance that speaks for itself..
